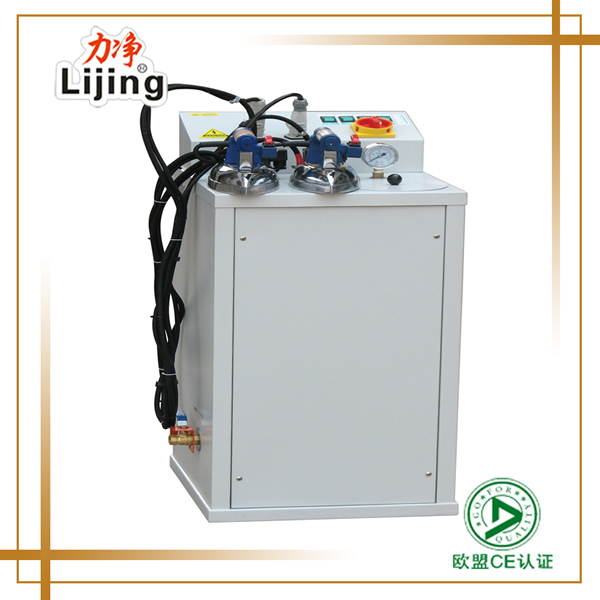

The aircraft is continuously generate pressure steam miniature boilers provide steam for the steam iron equipment, ironing finishing and garment industry to improve quality, is the ideal equipment to improve product quality.
| 型號 Model | DZFB3 | DZF6 | DZF9 | DZF12 | DZF18 | DZF24 | BON36 |
|
加熱功率 Heating power |
3KW | 2+4=6KW | 3+6=9KW | 6+6=12KW | 9+9=18KW | 12+12=24KW | 18+18=36KW |
| 電壓 Voltage | 220V | 220V/380V | 220V/380V | 220V/380V | 380V | 380V | 380V |
|
額定蒸汽壓力： Rated steam pressure |
0.4Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa |
|
額定蒸發量： Rated evaporation |
4.3kg/h | 8.6kg/h | 12.9kg/h | 18kg/h | 25.8kg/h | 34.4kg/h | 51.6kg/h |
|
有效水容積： Effective water volume |
18L | 18L | 28L | 38L | 48L | 48L | 48L |
| 包裝尺寸：Packing dimension(mm) | 560×370×810 | 620×360×780 | 630×560×1360 | 550×700×1200 | 820×750×1420 | 820×750×1420 | 1040×640×1360 |
| 重量：Weight(kg0 | 30 | 45 | 80 | 100 | 124 | 124 | 163 |
| 自動化：Automation |
半自動,手加水 Semi-automatic, manual add water |
全自動 fully automatic |
全自動 fully automatic |
全自動 fully automatic |
全自動 fully automatic |
全自動 fully automatic |
全自動 fully automatic |
|
 |
 |
 |
 |
|
|
|
